Pipelines, Valves and Fittings

We offer a full range of accessories for pipelines: launching traps, receiving traps, intermediate and bidirectional traps, quick opening closures, spheres, batching, cleaning and gauging pigs, Pig sigs, gas filters and liquids filters.

Pipeline

  • Pipeline type API5L GRX60 PSL, LSAW up to 42 inches coted
  • API5L-Gr.B seamless from 1inch to 4 inches bare in the plain end and Bare

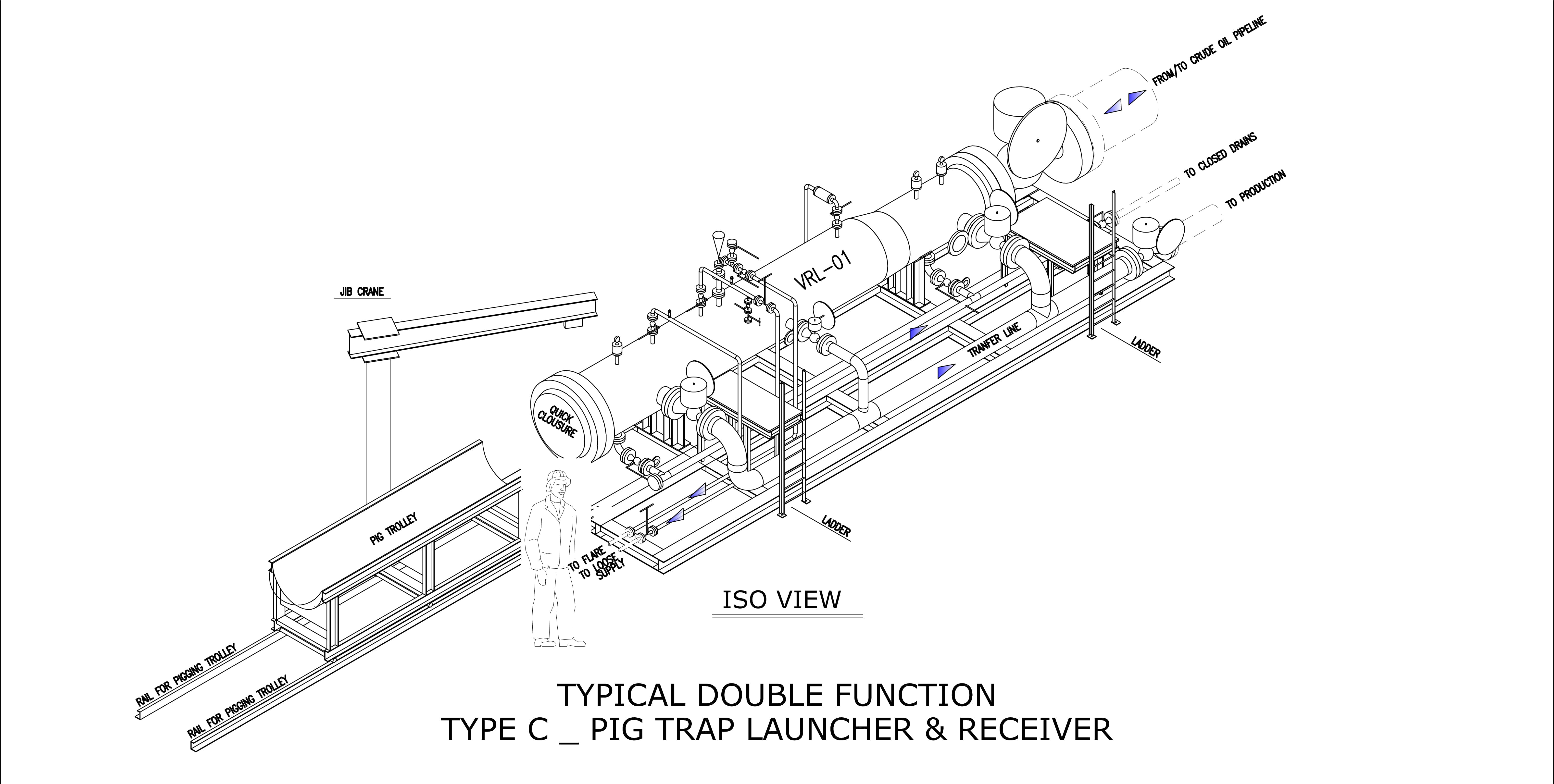

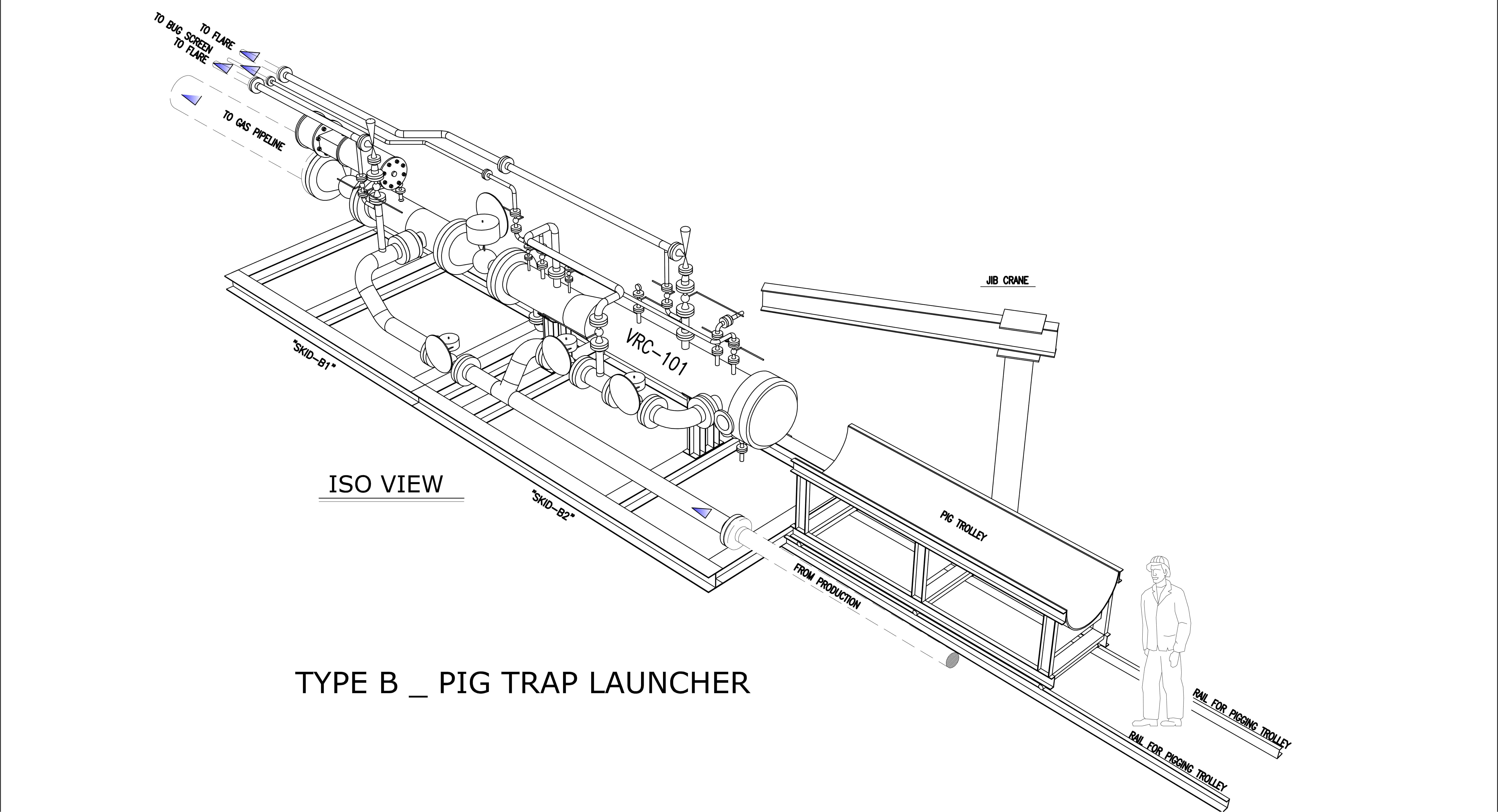

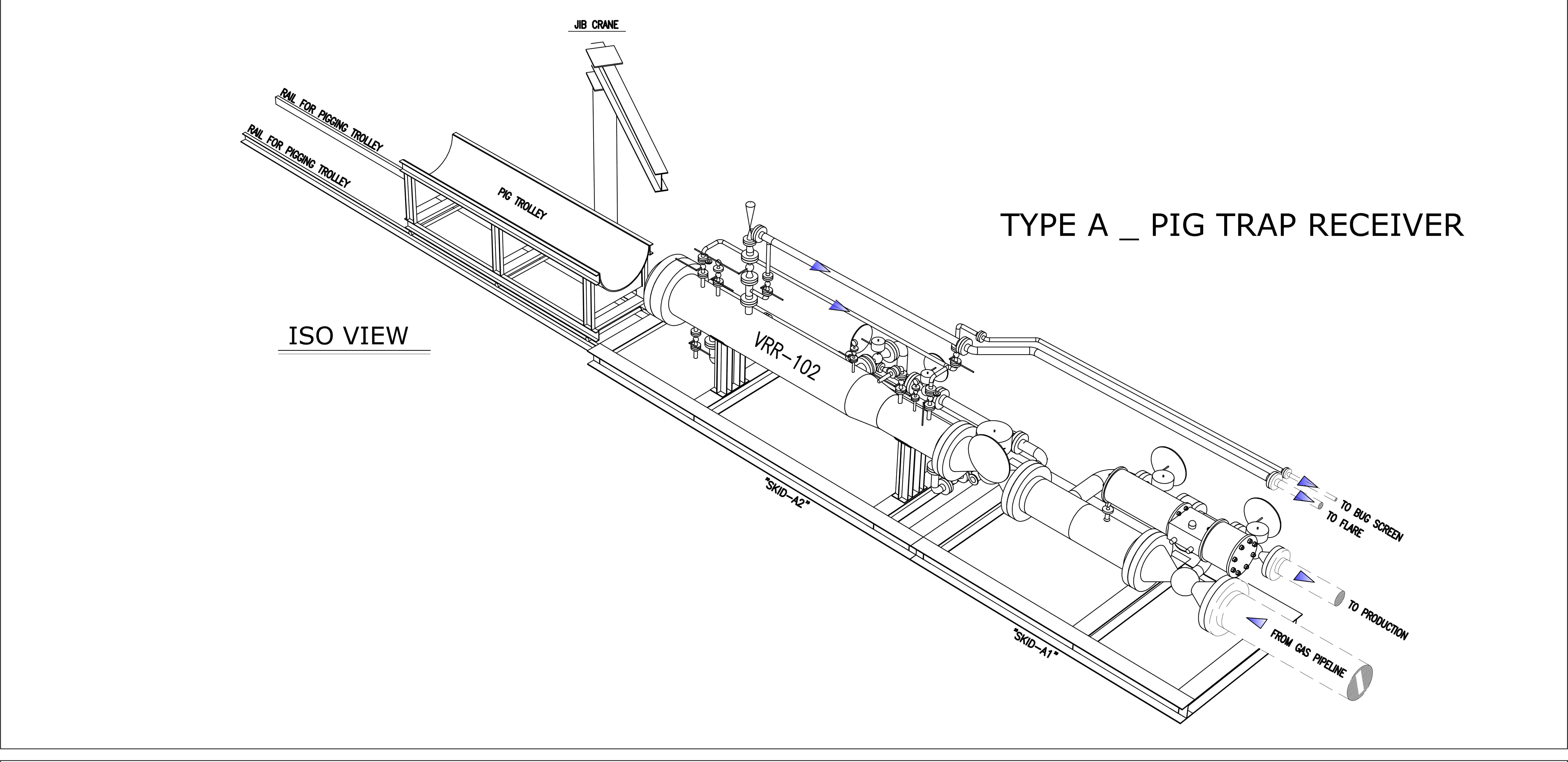

PIG Trap

Pig Launcher/ Receivers offered are in a full range of sizes 24inch up to 42inch in Class 150 to 900 and higher according to ASME B31.4 sec. XI ASME V, ASME VIII Div1 for crude oil pipeline and also automated

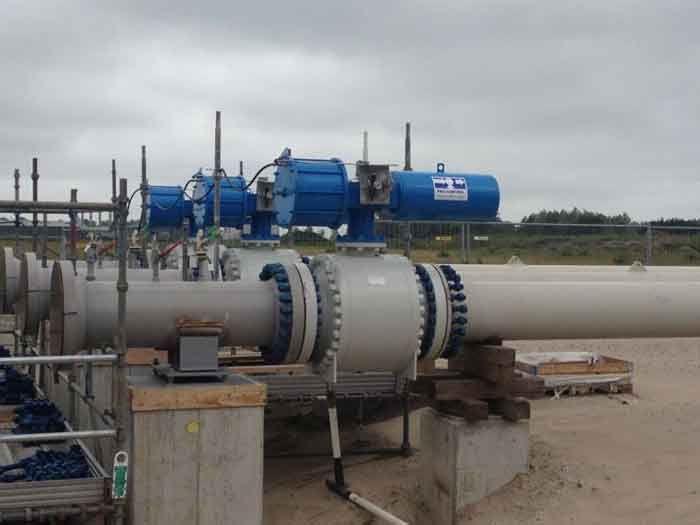

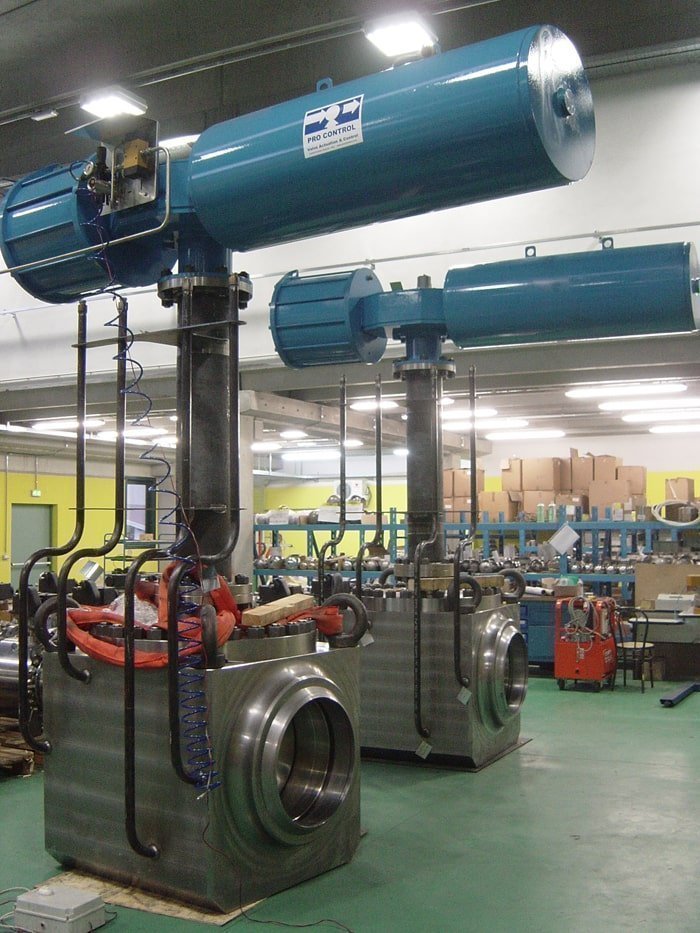

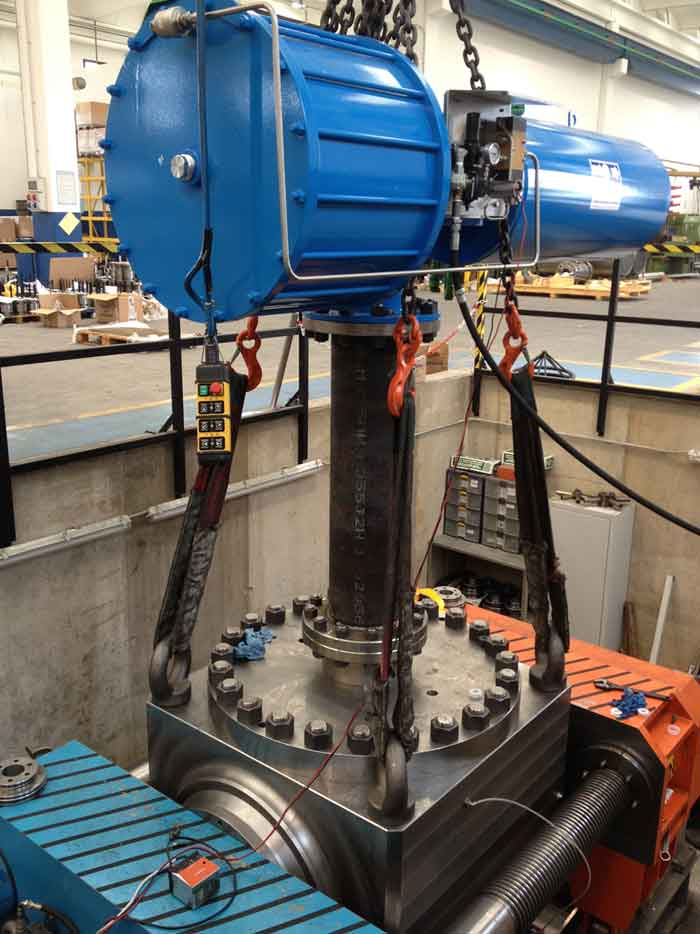

Gate valves

Gate valves according to Design Standards: API 600 (ISO-10434)/API-603/ASME B16.34

Size Range:
ANSI Class 150: 1/2” to 60”
ANSI Class 300: 1/2” to 48”
ANSI Class 600: 1/2” to 36”
ANSI Class 900: 1/2” to 36”
ANSI Class 1500: 1/2” to 24”
ANSI Class 2500: 1/2” to 24”

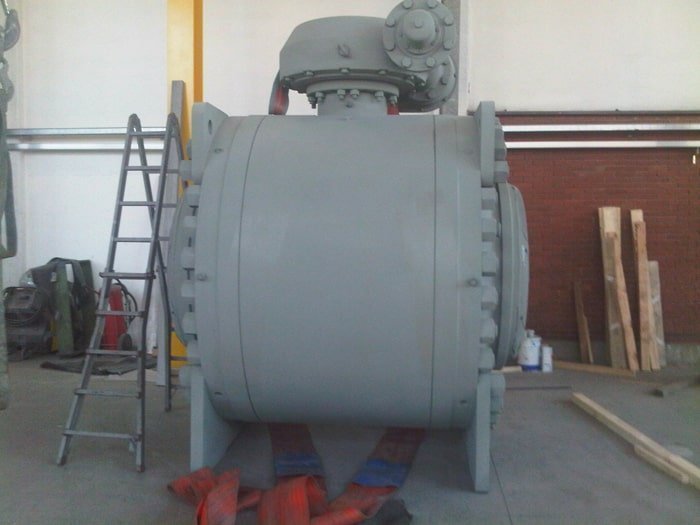

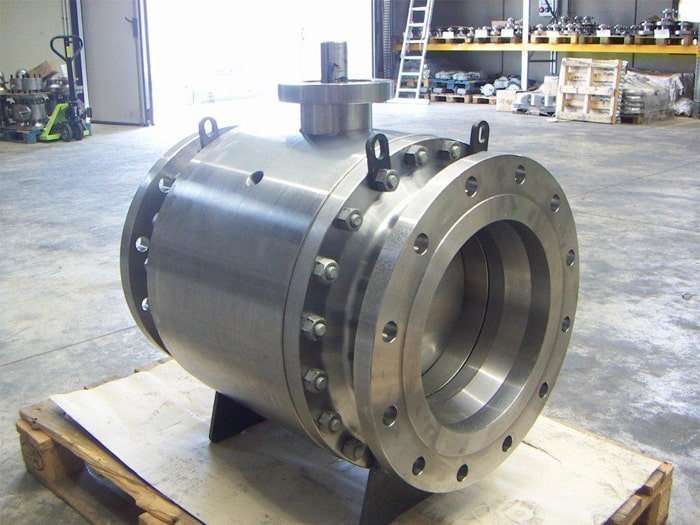

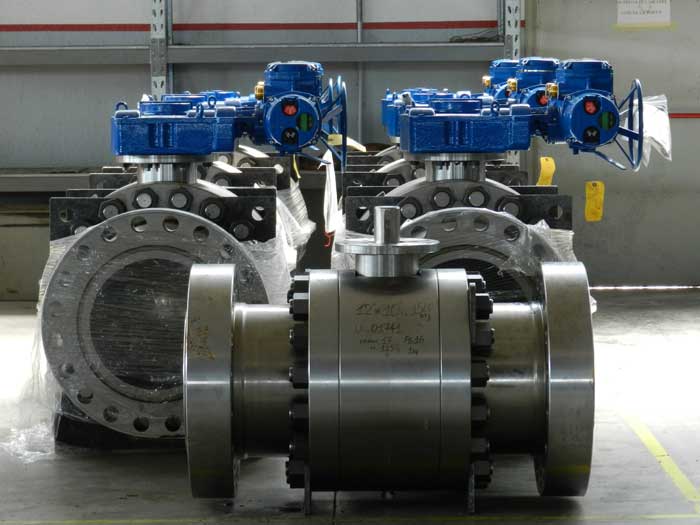

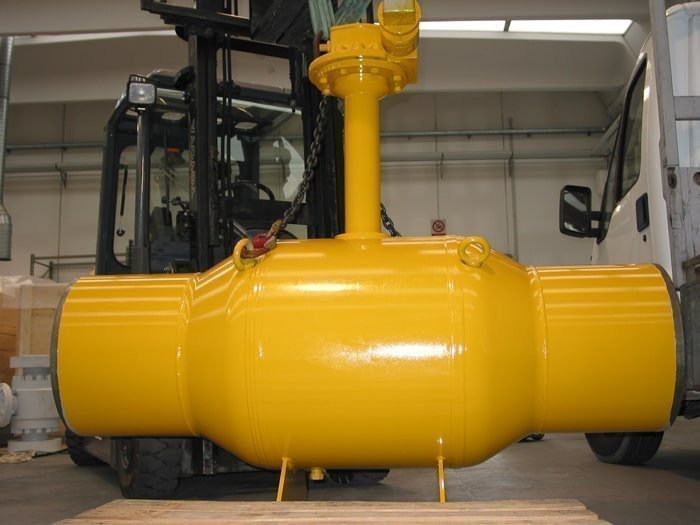

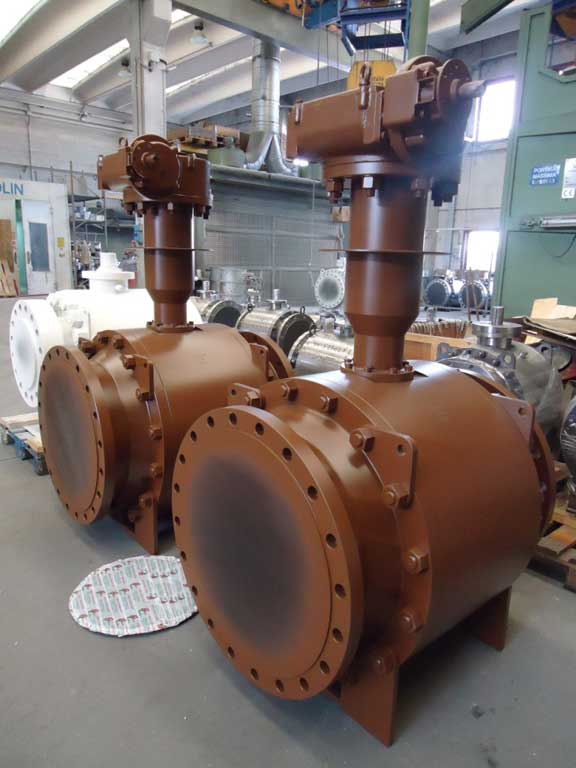

Ball Valves

Manual Ball valves, Trunnion Mounted and, Trunnion Mounted Top Entry Ball Valves

  • Size: 2" (50mm) to 56" (1400mm)
  • Class: 150# to 2500#
  • Design: API 6D
  • Ends: FF, RF, RTJ, SW, BW, NPT
  • Bore: Reduced or Full
  • Seat: Soft or Metal to Metal

Materials:

  • Carbon Steel: ASTM A105N, ASTM A 350 Gr. LF2;
  • Stainless Steel: ASTM A182 F316;
  • Duplex Stainless Steel: ASTM A182 F51;
  • Super Duplex Stainless Steel: ASTM A182 F53, F55;
  • Nickel Alloys: Incoloy, Inconel 625
  • Aluminium bronze

Fittings

  • Main folds: configuration for operating pressures up to 15,000 psi standard service

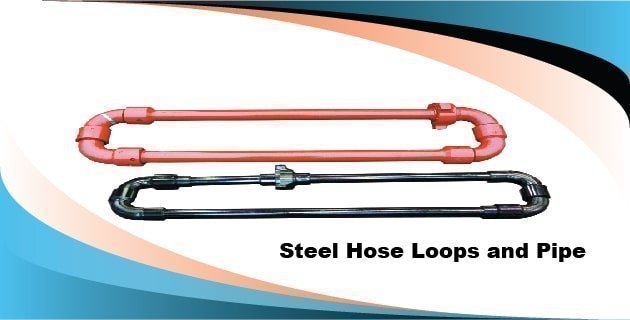

  • Hose Loops: full range of fluids to cold working pressures up to 15,000 psi and come in sizes and configurations to meet any need

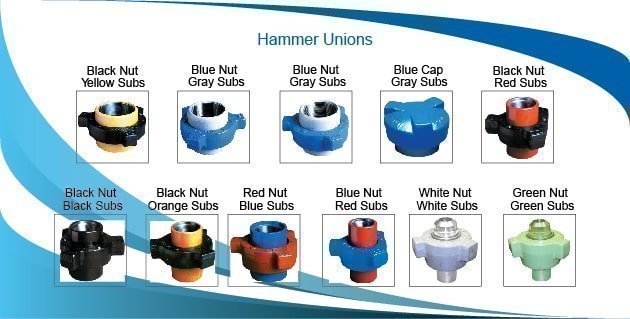

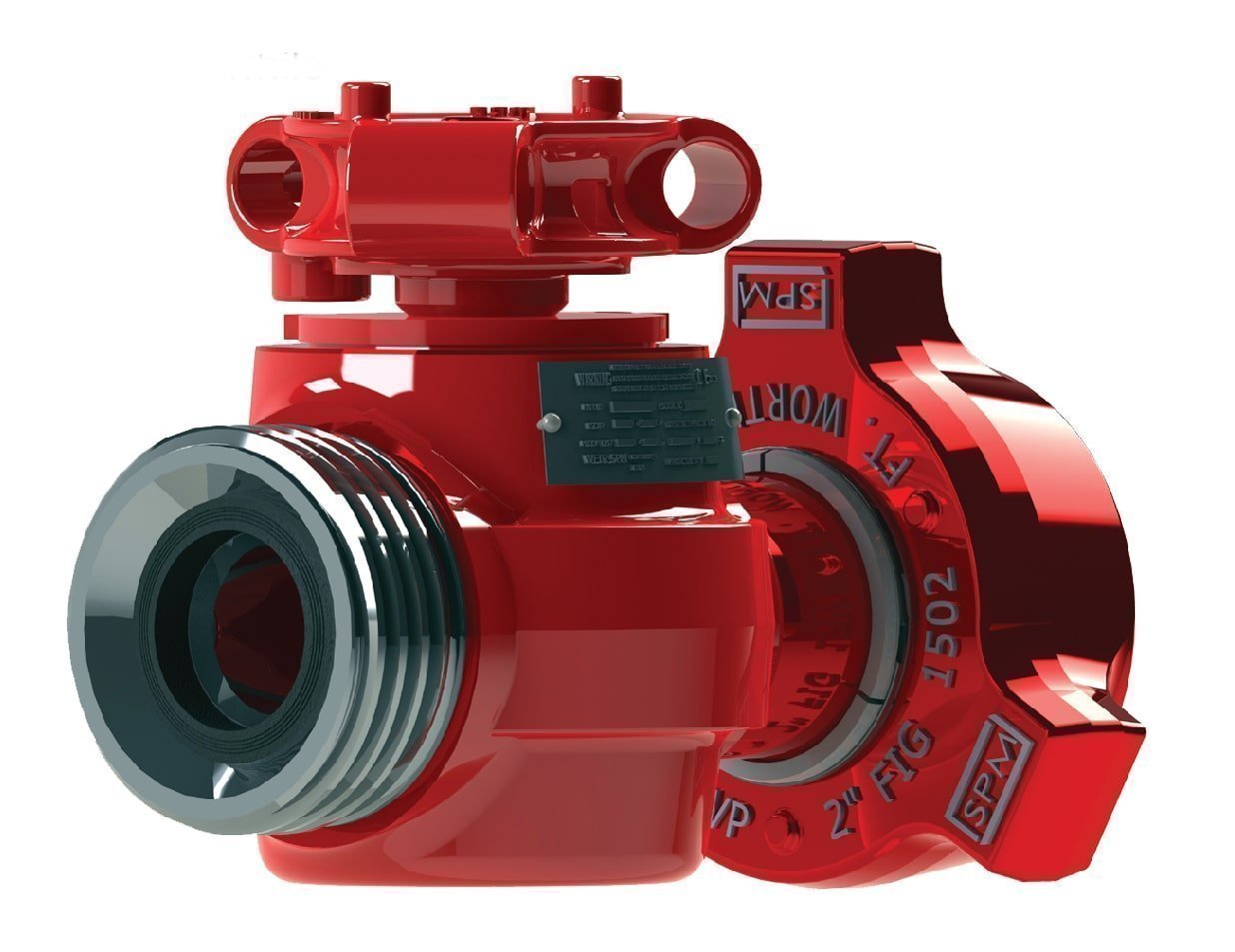

  • Hummer unions in  FIG602 and FIG1502
  • Pipes : N.P.S. pipe comes in 2-inch 1502, 3-inch 1502, 4-inch 1002 and 4-inch 1502 configurations
